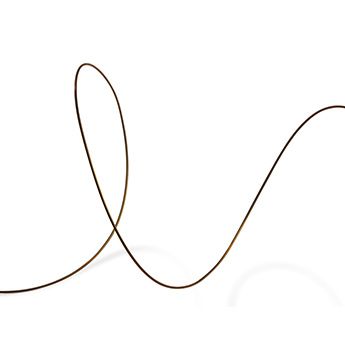

黄铜,线, Cu63Zn37, 1mm 直径, Hard Temper
关注：1956
品牌：Goodfellow
产地：英国
| 订货号 | 包装规格 |
| Length (Round) | |
| 465-625-31 | 1 m |
| 203-168-77 | 5 m |
| 396-090-63 | 25 m |
| 511-337-33 | 50 m |
| 917-167-34 | 100 m |
| 645-914-43 | 200 m |
产品参数
| Diameter[直径] | 1mm |
| Length[长度] | 1 m - 200 m |
| Temper[状态] | Hard |
| Thermal Properties(热性能) | |
| Coefficient of thermal expansion ( x10⁻⁶ K⁻¹ ) | 19.000 - 20.500 @20-100℃ |
| Melting point ( C ) | 900.00 - 920.00 |
| Thermal conductivity ( W m⁻¹ K⁻¹ ) | 125.00 @23℃ |
| Mechanical Properties(机械性能) | |
| Elongation at break ( % ) | < 55.0 |
| Hardness - Brinell | 65 - 136 |
| Modulus of elasticity ( GPa ) | 95.0 - 110.0 |
| Shear strength ( MPa ) | 280 - 310 |
| Tensile strength ( MPa ) | 330.00 - 500.00 |
| Electrical Properties(电气特性) | |
| Electrical resistivity ( μOhmcm ) | 6.2-6.6 |
| Temperature coefficient ( K⁻¹ ) | 0.00160 - 0.00170 |
| Physical Properties(物理性质) | |
| Density ( g cm⁻³ ) | 8.450 |
其他参数
公差
| 直径 | ±10% | |
|---|---|---|
| 长度 | +5% / -1% |
产品发布日期：2025.07.02
