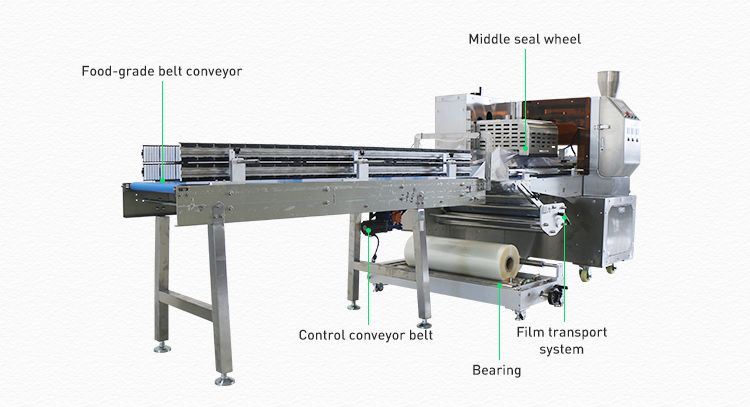

Product name: horizontal packing machine
model: CB-800XS
Automatic packing machine
Using smart servo technologyStandard features:
independent motors (Conveyor, center sealing), easy for maintenance
Motion controller for quick response to various commands
Accurate positioning
Independent temperature control for center sealing and end sealing
Food grade contact parts
Touch screen 7”Special features:
All control in one control panel, user-friendly and easy operation
Up and down cutter for high products packing and ensure the compact package
Empty bag prevention, no product no bag
No limit for product length
Independent control for movement of center sealing part, to meet different product heightOutstanding Features
Output
Up to 15-20 products per minute
Product and film characteristic may affect machine outputSize Range
Package cut-off length
60-6000mm
Product width
Max.390mm
Product height
Max.200mm
Packaging Material Reel
Reel diameter
≤300mm
Core diameter
≤75mm
Packaging material width
Max.800mm
Connections
Voltage
220V,50HZ
Power usage
5.2KW
Machine weight
900kg
Machine dimensions
L4200mm*W1400mm*H1450mm
Blade cut type
Intermittent(Up and down)
Motor configuration
Double servos
Optional Device
date printer, etc.
